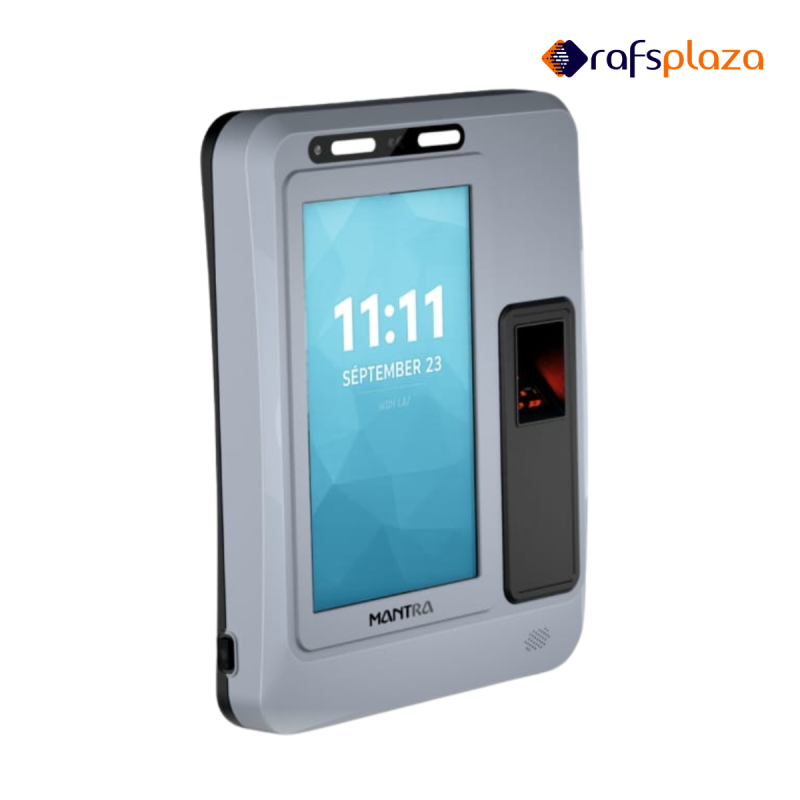

Mantra MBAS40 — Aadhaar Enabled Biometric Attendance System (AEBAS) with Face ID & Fingerprint

Mantra’s 7” L1 AEBAS Device MBAS40 is engineered for high-accuracy biometric identification, combining advanced algorithms with a PIV/STQC L1-certified MFS110 scratch-free optical fingerprint sensor and an 8MP facial recognition system. It is ideally suited for Aadhaar-enabled time attendance tracking across government and enterprise environments.

Designed for wall-mount deployment, the MBAS40 features a scratch-resistant capacitive touchscreen with toughened glass for durability in high-traffic settings. Its efficient thermal management ensures stable performance even during continuous operation. With dual biometric authentication—fingerprint and face recognition—the device delivers secure, reliable identity verification.

Powered by a quad-core ARM Cortex A53 processor with 4GB RAM and 32GB storage, the MBAS40 handles real-time identity verification without lag. Its scratch-resistant capacitive touchscreen with toughened 6H glass ensures durability across continuous operation shifts. Built-in IR proximity sensing auto-wakes the device, while thermal management keeps performance stable all day.

Equipped with built-in 4G LTE, Ethernet, Wi-Fi, and GPS, the MBAS40 offers seamless connectivity. The integrated 6,000 mAh rechargeable battery with auto sleep and wake-up functionality supports extended usage, making the device a dependable solution for uninterrupted attendance and access control operations.

Certified CE, RoHS, BIS, IP54, STQC L1, and UIDAI-compliant, the MBAS40 is the trusted choice for Aadhaar-based time-attendance tracking across India.

Mantra MBAS40 — Key Highlights

Fingerprint sensor: PIV/STQC L1-certified MFS110 scratch-free optical FAP10 sensor, 500 DPI, 8-bit grayscale. Certifications: STQC L1, UIDAI, FBI PIV

Facial recognition: 8MP auto-focus camera, 10–150 cm range, white LED auto on/off based on ambient light

Processor & memory: ARM Cortex A53 quad-core @ 2.0 GHz, 4 GB RAM, 32 GB flash, MicroSD up to 256 GB. OS: Android 14 GMS

Display: 7" TFT LCD, 1024×600, capacitive multi-touch, 6H toughened glass, scratch-resistant. IP54 rated

Connectivity: 4G LTE, Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.0, GPS (16-ch NMEA), Ethernet 10/100, Dual SIM, AGPS

Battery & power: 6,000 mAh Li-Ion rechargeable & replaceable, auto sleep/wake via IR proximity sensor. AC 90–265 V input

RFID / Smart card (optional): ISO14443 A/B, MIFARE Classic/DESFire/Plus, NTAG, 2× SAM sockets (ISO7816)

Certifications: CE, RoHS, BIS, IP54, STQC L1, UIDAI, FBI PIV, FCC, EN/IEC 62368-1, IS13252 Part I

Form factor: 238 × 185 × 37 mm, ~0.8 kg, wall-mount design, 0–50°C operating temp, 10–90% RH

Buy Mantra Mantra MBAS40 AEBAS attendance tab from Rafs Plaza with affordable price.
